100-277VAC 50/60Hz DIN Rail Power Supply Modular Applied in Automation Lighting Control
24 Volts DC 60 Watts DIN Rail Power Supply Controller Features

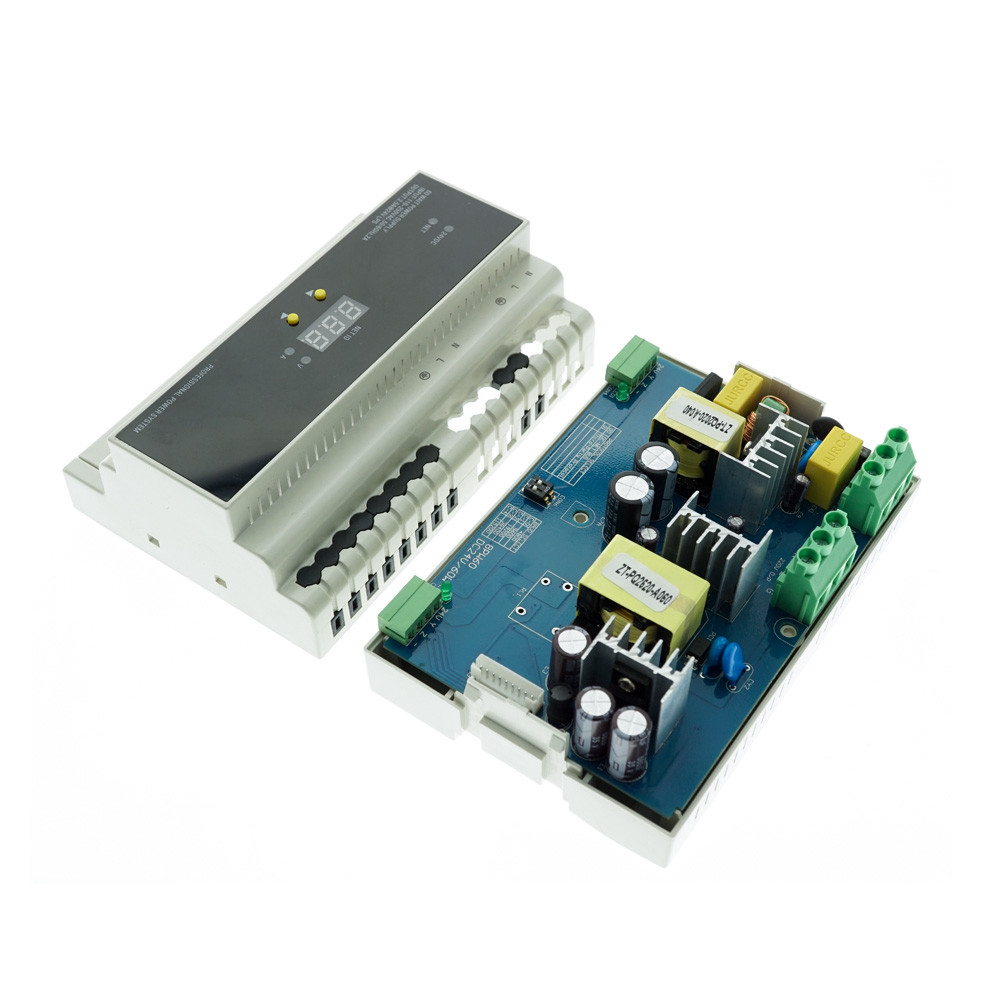

The DIN-PWS60 is a 60 Watt DC-NET Power Supply module. Two DC-NET power ports are provided to supply power for the whole lighting control system. It designed to snap onto a standard DIN rail for easy installation in a wall-mount enclosure.
The DIN-PWS60 communicates with a DIN-CP1 Automation Processor, or other Third-Party control systems, via the DC-NET control network A pair of DC-NET ports on the DIN-PWS60 allows for easy daisy-chaining of several DIN Rail Series automation control modules.
24 Volts DC 60 Watts DIN Rail Power Supply Controller Specifications
| Output Rating | 60 Watts (2.5 Amps) at 24 Volts DC, regulated, limited power source |
| Line Power/Mains | 200 VA (2 Amps max.) @ 110-250 Volts AC, 50/60 Hz |
| Power Consumption | 70 Watts at full rated output |
| 100-277VAC 50/60Hz | (2) Set of (3) captive screw terminals; Line power input and ground |
| FUSE | (1) AC input fuse, T3.15AH;4x8 mm, 250 Volts, 3.15 Amps, time-lag, ceramic cartridge |
| NET | (2) 4-pin 3.81 mm detachable terminal blocks, paralleled;DC-NET power output ports with data pass-through |
| Ripple/Noise | <1% |
| Efficiency | 85% |
| Temperature | 32° to 104° F (0° to 40° C) |
| Humidity | 10% to 90% RH (non- condensing) |
24 Volts DC 60 Watts DIN Rail Power Supply Controller Application
Automation Lighting Control System Applied in: stadium, school, hospital, airport, metro, church, office, commercial building, parking lot/car park/parking area, outdoor spaces, foyer, lobby, elevator hall, public walkway, bathroom, underground garage, meeting room, villa, home lighting, plazas, shopping malls, public building, industrial plants and factories, etc
Different packing at optional:
1. Retailing Packing:
Neutral Carton Package
2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic hazards
3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister
packing,sealed packing with your company information, bar code,ect. ( Discuss extral)
FAQ
1. What is intelligent lightincontrol g system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
Product Tags:
|
|
50/60Hz DIN Rail Power Supply Modular 100-277VAC For Automation Lighting Control Images
|
